WIP: feat: NCS-37 Quarkus integration #29

Closed

lq64 wants to merge 13 commits from feat/NCS-37 into main

pull from: feat/NCS-37

merge into: NowChess:main

NowChess:main

NowChess:feat/NCS-81

NowChess:performance

NowChess:feat/NCS-66

Conversation 2 Commits 13 Files Changed 75

+114991 -123

lq64 commented 2026-04-13 16:17:32 +02:00

Owner

Copy Link

Copy Source

Summary

Implements the full REST API defined in docs/api-spec.yaml as a new modules/backcore Quarkus 3.32.4 module. The module follows the exact same
Quarkus + Scala 3.5.1 setup established on the feat/quarkus branch (plugin, BOM, Jakarta CDI, @QuarkusTest + JUnit 5), and sits as a clean
adapter layer on top of the existing api, core, io, and rule modules — none of which were modified.

---

Endpoints implemented

Method	Path	Description
POST	/api/board/game	Create a new game
GET	/api/board/game/{gameId}	Get full game state
GET	/api/board/game/{gameId}/stream	NDJSON snapshot of current state
POST	/api/board/game/{gameId}/move/{uci}	Make a move (UCI notation)
GET	/api/board/game/{gameId}/moves	List legal moves (optional ?square=e2 filter)
POST	/api/board/game/{gameId}/undo	Undo last move
POST	/api/board/game/{gameId}/redo	Redo last undone move
POST	/api/board/game/{gameId}/resign	Resign the game
POST	/api/board/game/{gameId}/draw/{action}	Draw offer/accept/decline/claim
POST	/api/board/game/import/fen	Create game from FEN string
POST	/api/board/game/import/pgn	Create game from PGN
GET	/api/board/game/{gameId}/export/fen	Export current position as FEN
GET	/api/board/game/{gameId}/export/pgn	Export full game as PGN

---

Architecture

Why a separate module (not embedded in core)

core is a framework-agnostic domain library used by the terminal UI and future CLIs. Adding Quarkus to it would force all consumers to pull in
the entire runtime and violate the existing architectural principle ("GameEngine never imports UI code"). backcore is the web adapter — a third
delivery mechanism alongside ui.

Key design decisions

• GameStore (@ApplicationScoped) — in-memory Map[String, GameSession] with synchronized access. Holds one GameSession per game.
• No GameEngine — GameEngine was designed for the terminal (auto-resets after checkmate, observer pattern). backcore calls
  RuleSet.applyMove directly and manages GameContext state in GameStore, giving full lifecycle control.
• CommandInvoker for undo/redo — reused from modules/core. Each move is stored as a MoveCommand with previousContext for undo and
  moveResult.newContext for redo.
• GameResult sealed trait — captures why a game ended (Checkmate, Stalemate, Resign, AgreedDraw, FiftyMoveDraw,
  InsufficientMaterial), decoupled from GameStatus strings in the API spec.
• Draw offer state — tracked per-session in GameSession.drawOfferedBy: Option[Color]. The offer persists across moves (REST model has no
  implicit withdrawal on move, unlike OTB chess).
• Stream endpoint — simplified to a single NDJSON line snapshot ({"type":"gameFull","game":{...}}\n) rather than a persistent SSE
  connection.
• PGN field in GameState — populated with SAN move text via PgnExporter.exportGame(Map.empty, moves), which returns move-text-only when
  given no headers.

---

Module structure

modules/backcore/
├── build.gradle.kts
├── src/main/
│ ├── resources/application.yml
│ └── scala/de/nowchess/backcore/
│ ├── config/JacksonConfig.scala # registers DefaultScalaModule
│ ├── dto/Dtos.scala # all request/response DTOs
│ ├── game/
│ │ ├── GameId.scala # 8-char alphanumeric ID generator
│ │ ├── GameMapper.scala # GameSession → DTOs, status computation
│ │ ├── GameResult.scala # sealed trait for game-over reasons
│ │ ├── GameSession.scala # per-game state (context + invoker + metadata)
│ │ └── GameStore.scala # @ApplicationScoped in-memory store
│ └── resource/
│ ├── GameResource.scala # game lifecycle, resign, draw, export, stream
│ ├── ImportResource.scala # FEN/PGN import
│ └── MoveResource.scala # move, legal moves, undo, redo
└── src/test/scala/de/nowchess/backcore/
├── BackcoreStartupTest.scala
└── resource/
├── GameResourceTest.scala
├── ImportExportTest.scala
├── MoveResourceTest.scala
├── ResignDrawTest.scala
└── UndoRedoTest.scala

---

Tests

34 @QuarkusTest integration tests, all passing. Each TDD cycle wrote tests before implementation:

Test class	Tests	Coverage
BackcoreStartupTest	1	Container boots
GameResourceTest	4	createGame, getGame, 404
MoveResourceTest	6	makeMove, legal moves, 400/404
UndoRedoTest	4	undo/redo, empty-stack 400
ResignDrawTest	8	resign, offer/accept/decline/claim
ImportExportTest	10	FEN/PGN import, FEN/PGN export, stream

---

Build

./gradlew :modules:backcore:test    # 34 tests, all green
./gradlew :modules:backcore:build   # produces quarkus-run.jar

Smoke test

./gradlew :modules:backcore:quarkusDev

curl -s -X POST http://localhost:8080/api/board/game \
     -H "Content-Type: application/json" -d '{}' | jq .

curl -s http://localhost:8080/api/board/game/{gameId}/moves | jq '.moves | length'

---
Out of scope / follow-up

- Persistent storage (DB) — currently in-memory only; games are lost on restart
- Authentication — Bearer token reserved per api-spec; endpoints are currently open
- True SSE streaming — /stream returns a one-shot NDJSON snapshot, not a persistent connection
- Fifty-move rule promotion pending state — promotionPending status not yet triggered (requires pawn-reaches-back-rank detection without promotion
 character)


NOTE: The TUI and GUI both connect to the local GameEngine in-process. The Quarkus server runs its own separate in-memory GameStore — they are
independent for now (no shared state between the UI and the REST API). If you want them to share game state later, that would be a separate
ticket.

NOTE: Quarkus does't use GameEngine. Instead it uses the newly generated GameSession. Does this fit our architectural vision?

### Summary Implements the full REST API defined in `docs/api-spec.yaml` as a new `modules/backcore` Quarkus 3.32.4 module. The module follows the exact same Quarkus + Scala 3.5.1 setup established on the `feat/quarkus` branch (plugin, BOM, Jakarta CDI, `@QuarkusTest` + JUnit 5), and sits as a clean adapter layer on top of the existing `api`, `core`, `io`, and `rule` modules — none of which were modified. --- ### Endpoints implemented | Method | Path | Description | |--------|------|-------------| | `POST` | `/api/board/game` | Create a new game | | `GET` | `/api/board/game/{gameId}` | Get full game state | | `GET` | `/api/board/game/{gameId}/stream` | NDJSON snapshot of current state | | `POST` | `/api/board/game/{gameId}/move/{uci}` | Make a move (UCI notation) | | `GET` | `/api/board/game/{gameId}/moves` | List legal moves (optional `?square=e2` filter) | | `POST` | `/api/board/game/{gameId}/undo` | Undo last move | | `POST` | `/api/board/game/{gameId}/redo` | Redo last undone move | | `POST` | `/api/board/game/{gameId}/resign` | Resign the game | | `POST` | `/api/board/game/{gameId}/draw/{action}` | Draw offer/accept/decline/claim | | `POST` | `/api/board/game/import/fen` | Create game from FEN string | | `POST` | `/api/board/game/import/pgn` | Create game from PGN | | `GET` | `/api/board/game/{gameId}/export/fen` | Export current position as FEN | | `GET` | `/api/board/game/{gameId}/export/pgn` | Export full game as PGN | --- ### Architecture **Why a separate module (not embedded in `core`)** `core` is a framework-agnostic domain library used by the terminal UI and future CLIs. Adding Quarkus to it would force all consumers to pull in the entire runtime and violate the existing architectural principle ("GameEngine never imports UI code"). `backcore` is the web adapter — a third delivery mechanism alongside `ui`. **Key design decisions** - **`GameStore` (`@ApplicationScoped`)** — in-memory `Map[String, GameSession]` with `synchronized` access. Holds one `GameSession` per game. - **No `GameEngine`** — `GameEngine` was designed for the terminal (auto-resets after checkmate, observer pattern). `backcore` calls `RuleSet.applyMove` directly and manages `GameContext` state in `GameStore`, giving full lifecycle control. - **`CommandInvoker` for undo/redo** — reused from `modules/core`. Each move is stored as a `MoveCommand` with `previousContext` for undo and `moveResult.newContext` for redo. - **`GameResult` sealed trait** — captures why a game ended (`Checkmate`, `Stalemate`, `Resign`, `AgreedDraw`, `FiftyMoveDraw`, `InsufficientMaterial`), decoupled from `GameStatus` strings in the API spec. - **Draw offer state** — tracked per-session in `GameSession.drawOfferedBy: Option[Color]`. The offer persists across moves (REST model has no implicit withdrawal on move, unlike OTB chess). - **Stream endpoint** — simplified to a single NDJSON line snapshot (`{"type":"gameFull","game":{...}}\n`) rather than a persistent SSE connection. - **PGN field in `GameState`** — populated with SAN move text via `PgnExporter.exportGame(Map.empty, moves)`, which returns move-text-only when given no headers. --- ### Module structure modules/backcore/ ├── build.gradle.kts ├── src/main/ │ ├── resources/application.yml │ └── scala/de/nowchess/backcore/ │ ├── config/JacksonConfig.scala # registers DefaultScalaModule │ ├── dto/Dtos.scala # all request/response DTOs │ ├── game/ │ │ ├── GameId.scala # 8-char alphanumeric ID generator │ │ ├── GameMapper.scala # GameSession → DTOs, status computation │ │ ├── GameResult.scala # sealed trait for game-over reasons │ │ ├── GameSession.scala # per-game state (context + invoker + metadata) │ │ └── GameStore.scala # @ApplicationScoped in-memory store │ └── resource/ │ ├── GameResource.scala # game lifecycle, resign, draw, export, stream │ ├── ImportResource.scala # FEN/PGN import │ └── MoveResource.scala # move, legal moves, undo, redo └── src/test/scala/de/nowchess/backcore/ ├── BackcoreStartupTest.scala └── resource/ ├── GameResourceTest.scala ├── ImportExportTest.scala ├── MoveResourceTest.scala ├── ResignDrawTest.scala └── UndoRedoTest.scala --- ### Tests 34 `@QuarkusTest` integration tests, all passing. Each TDD cycle wrote tests before implementation: | Test class | Tests | Coverage | |------------|-------|----------| | `BackcoreStartupTest` | 1 | Container boots | | `GameResourceTest` | 4 | createGame, getGame, 404 | | `MoveResourceTest` | 6 | makeMove, legal moves, 400/404 | | `UndoRedoTest` | 4 | undo/redo, empty-stack 400 | | `ResignDrawTest` | 8 | resign, offer/accept/decline/claim | | `ImportExportTest` | 10 | FEN/PGN import, FEN/PGN export, stream | --- ### Build ```bash ./gradlew :modules:backcore:test # 34 tests, all green ./gradlew :modules:backcore:build # produces quarkus-run.jar Smoke test ./gradlew :modules:backcore:quarkusDev curl -s -X POST http://localhost:8080/api/board/game \ -H "Content-Type: application/json" -d '{}' | jq . curl -s http://localhost:8080/api/board/game/{gameId}/moves | jq '.moves | length' --- Out of scope / follow-up - Persistent storage (DB) — currently in-memory only; games are lost on restart - Authentication — Bearer token reserved per api-spec; endpoints are currently open - True SSE streaming — /stream returns a one-shot NDJSON snapshot, not a persistent connection - Fifty-move rule promotion pending state — promotionPending status not yet triggered (requires pawn-reaches-back-rank detection without promotion character) NOTE: The TUI and GUI both connect to the local GameEngine in-process. The Quarkus server runs its own separate in-memory GameStore — they are independent for now (no shared state between the UI and the REST API). If you want them to share game state later, that would be a separate ticket. NOTE: Quarkus does't use GameEngine. Instead it uses the newly generated GameSession. Does this fit our architectural vision?

shosho996 requested review from shosho996 2026-04-13 21:57:20 +02:00

lq64 added 9 commits 2026-04-14 21:44:33 +02:00

feat: NCS-37 add backcore Quarkus module skeleton ... c830b143dc

Introduces the backcore Quarkus REST module with build configuration,
application.yml, and a smoke test confirming Quarkus boots successfully.

Co-Authored-By: Claude Sonnet 4.6 <noreply@anthropic.com>

fix: use version catalog keys for jackson-scala and junit-bom in backcore d59d692381

feat: NCS-37 game lifecycle endpoints (createGame, getGame) ... 21eee717f1

Add domain model (GameResult, GameSession, GameId, GameStore, GameMapper),
DTOs, JacksonConfig, and GameResource REST endpoints with QuarkusTest coverage.

Co-Authored-By: Claude Sonnet 4.6 <noreply@anthropic.com>

fix: use PgnExporter for SAN pgn field, fix status priority in GameMapper 41fa674bf7

feat: NCS-37 move-making, legal moves, undo/redo endpoints 6fc3b3c3df

feat: NCS-37 resign, draw actions, and export/stream endpoints 33dd63a9b6

feat: NCS-37 import FEN/PGN, export endpoints, NDJSON stream snapshot acddd58ad3

feat(backcore): Quarkus tests ... 2c4d96e373

Added quarkus test compatability with sonar through jacoco reporter

style: fix CRLF line endings introduced by rebase ... db955c08a5

Co-Authored-By: Claude Sonnet 4.6 <noreply@anthropic.com>

lq64 force-pushed feat/NCS-37 from 020941e404 to db955c08a5 2026-04-14 21:44:33 +02:00 Compare

lq64 added 1 commit 2026-04-14 23:24:29 +02:00

feat(backcore): Quarkus compatible with GUI/TUI ... 8fd6adc1f4

Added quarkus backcore run functionality so that it launches the TUI, GUI, Quarkus via modules: backcore:run

lq64 added 1 commit 2026-04-15 09:43:25 +02:00

test(backcore): achieve 100% line coverage ... 52197125f7

- Remove dead GameResult variants (Checkmate, Stalemate, InsufficientMaterial) that were never produced
- Fix ImportResource.importPgn to return 400 for null body instead of silently succeeding with empty PGN
- Add JaCoCo exclusions for companion objects and private ServiceState (only compiler-level synthetics)
- Add integration tests: all move types in toLegalMoveDto (capture/castle/en-passant/promotion), undo/redo/resign/exportPgn 404 paths, null-body endpoints
- Add unit tests: all parsePromotionChar branches (r/b/n/wildcard), drawAction claim success, engine setter, findMatchingMove orElse path, check status in GameMapper
- Add DtoCoverageTest and GameDomainCoverageTest covering synthetic methods (equals, hashCode, copy, productElement, productElementName, canEqual) and singleton serialization (writeReplace)

Result: LINE 300/300 (100%)

Co-Authored-By: Claude Sonnet 4.6 <noreply@anthropic.com>

Janis added 1 commit 2026-04-15 10:14:52 +02:00

feat: add API endpoints for game creation, draw offers, FEN/PGN import/export, and move actions 3bad8c64d3

Janis added 1 commit 2026-04-17 18:03:22 +02:00

feat: Bruno e69bbd233a

shosho996 reviewed 2026-04-17 20:18:29 +02:00

shosho996 left a comment

Owner

Copy Link

Copy Source

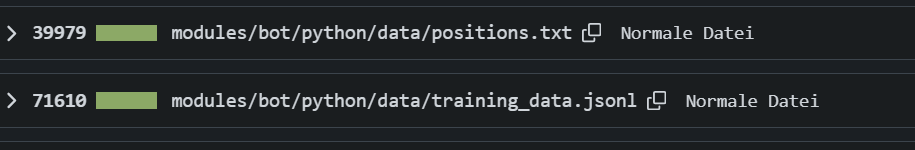

Why is there bot stuff in Quarkus branch? :( the diff is so big now too

Why is there bot stuff in Quarkus branch? :( the diff is so big now too <img width="686" alt="image.png" src="attachments/aa7b61b7-f3a1-4253-befc-1ff59f180507">


20 KiB

Janis commented 2026-04-17 20:20:12 +02:00

Member

Copy Link

Copy Source

Doesn't matter the branch is deprecated and will not be merged. Refactor in NCS-51

Doesn't matter the branch is deprecated and will not be merged. Refactor in NCS-51

Janis closed this pull request 2026-04-21 12:37:09 +02:00

Janis deleted branch feat/NCS-37 2026-04-21 12:37:12 +02:00

Some checks are pending

Hide all checks

Build & Test (NowChessSystems) TeamCity build failed

Details

Pull request closed

This pull request cannot be reopened because the branch was deleted.
